Basic Info.
Model NO.
144 Ports SC/UPC
Customized
Customized
Material

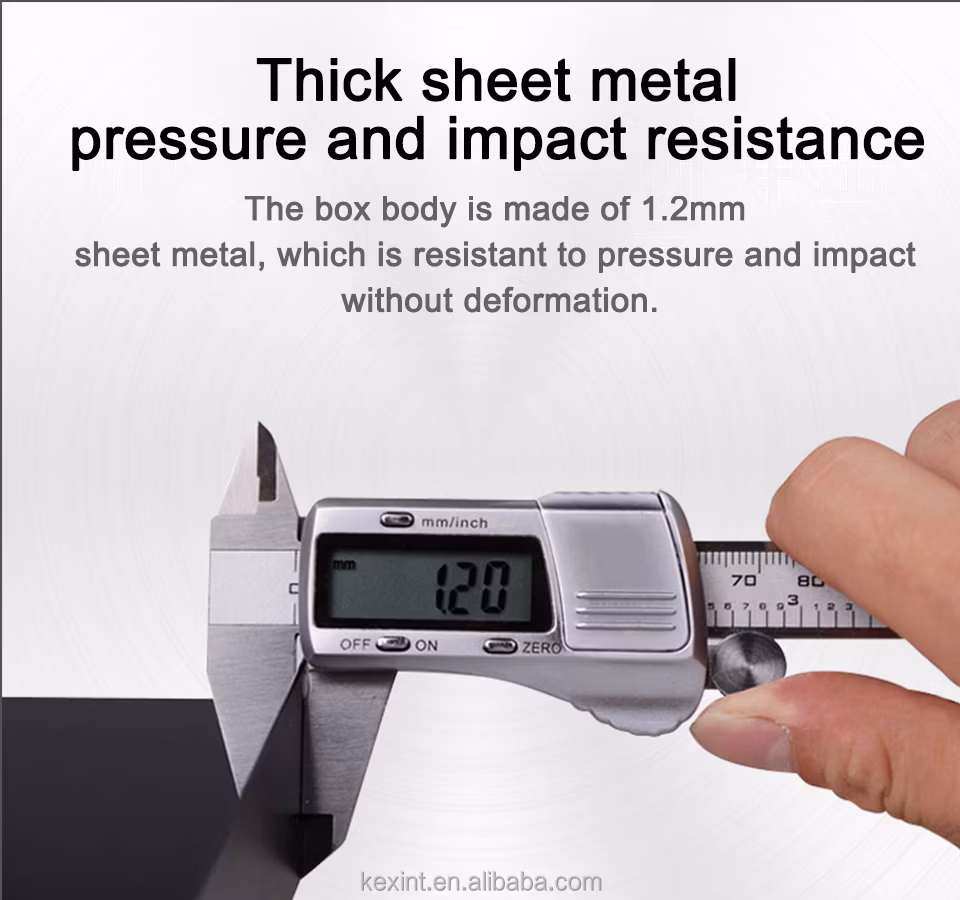

Plastic Parts ABS, Box Cold Rolled Sheet
Type
Fiber Optic Patch Panel
Capacity
144 Cores
OEM
Yes
Color
Gray,Black,White
Connector Type
Sc/Upc
Working Temperatur
-10 ~ +40 Degree Centigrade
Warranty Time
1 Year
Operating Temperature
-40~85 Degree Centigrade
Transport Package
Inner Carton+Outer Carton
Trademark
KEXINT
Origin
Guangdong, China
Production Capacity
5000 Piece/Pieces Per Week
Product Description

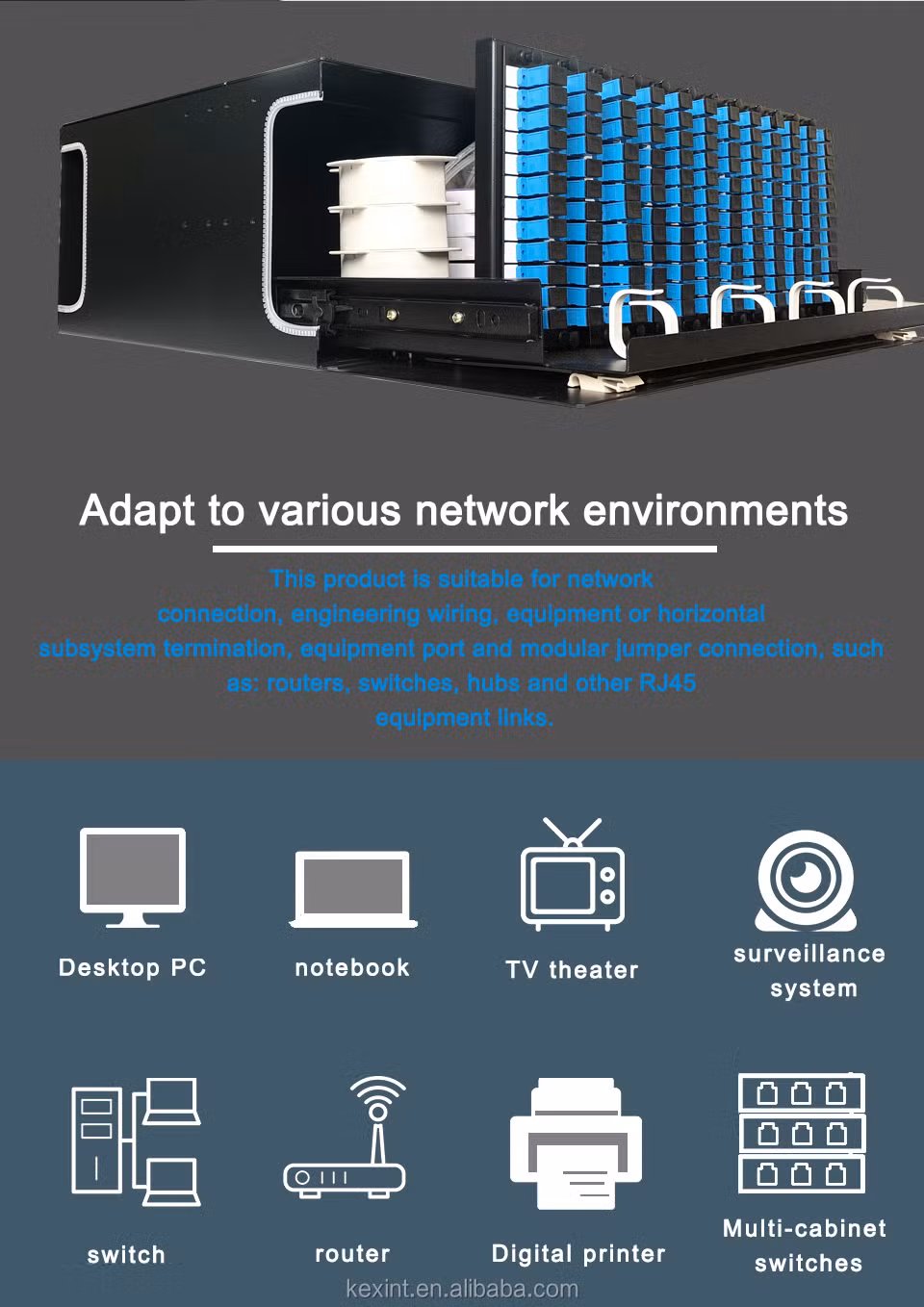

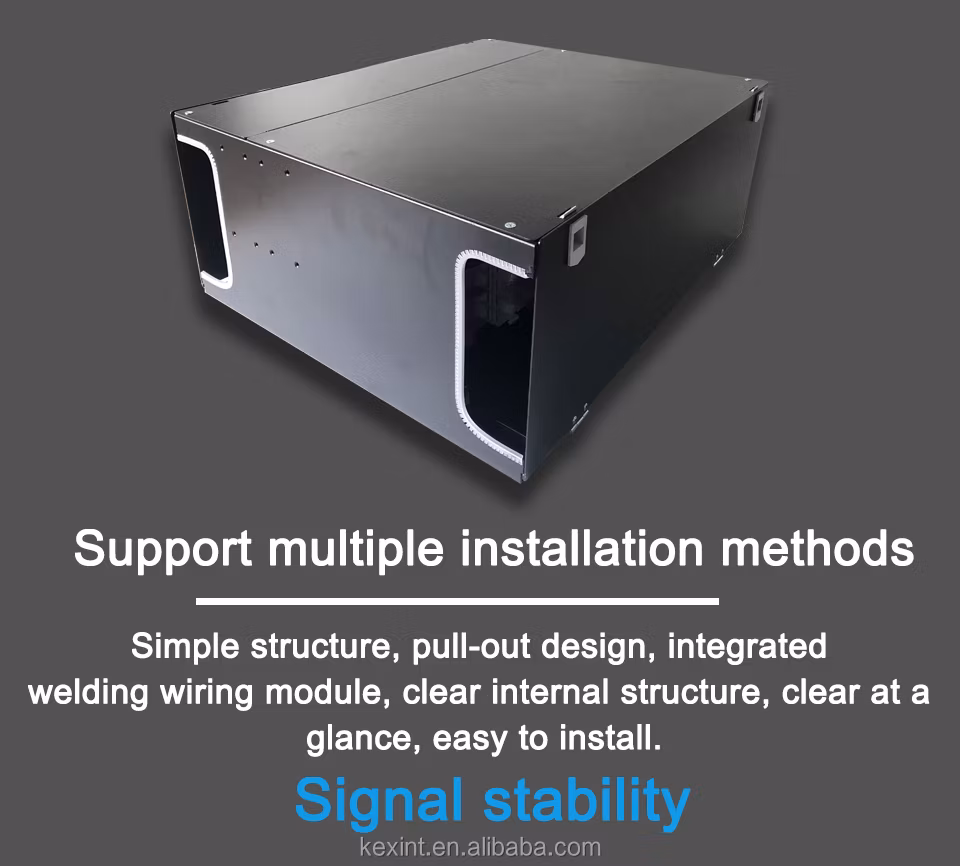

An optical distribution frame (ODF) is a frame used to provide cable interconnections between communication facilities, which can integrate fibre splicing, fibre termination, fibre optic adapters & connectors and cable connections together in a single unit. It can also work as a protective device to protect fibre optic connections from damage.
1) Standard size, light weight and reasonable structure
2) Splice tray inside changeable
3) Can be used in 19'', 23'' standard distribution frame
4) Suitable for ribbon and single fiber
5) Various panel plate to fit different adapter interface
6) Front mark on the plate is easy for identification and operation
7) 24C, 36C, 48C, 72C 96C 144C optional, with or without fiber optic pigtails and adapters
8) Easy for management and operation

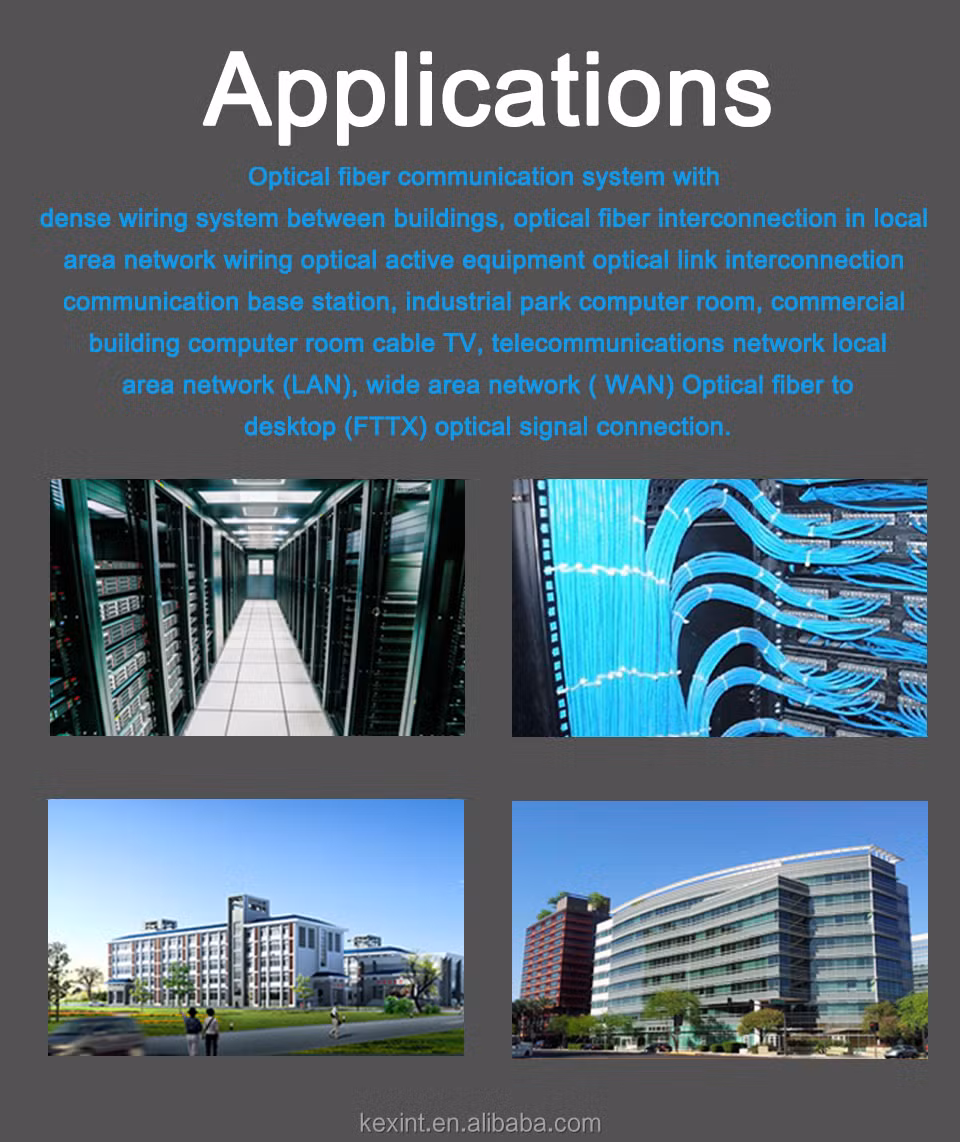

Application:
1) Telecommunications subscriber loop
2) Fiber to the home (FTTH)
3) LAN/WAN 4) CATV
| We support fiber capacity | 12/24/48/72/96/144 cores |
| Fiber Port | FC, SC, ST and LC |
| Number of ODF disks | 12 for 1, 24 for 2, 48 for 4, 72 for 6, 96 for 8, and 144 for 12 |
| Working temperature | -10 °C ~ +40 °C |
| Storage temperature | -25 ° C ~ +55 ° C |
| Relative humidity | ≤ 85% (+30 ° C) |
| Atmospheric pressure | 70Kpa~106Kpa |
| Nominal operating wavelength | 850nm, 1310nm, 1550nm |
| Insertion loss | ≤ 0.5dB |
| Return loss | PC ≥ 40dB, UPC ≥ 50dB, APC ≥ 60dB |
| Electrical strength | ≥3KV(DC)/1min without breakdown |
| Insulation resistance | ≥1000MΩ/500V (DC) |
| Life | ≥1000 times |
| Application range | Small and medium-sized wiring system for fiber to the cell, fiber to the building, remote module office and wireless base station |
1. UL certificate makes the quality lever be the best.
2. Independent research and development, Can be modified according to customer requirements
3. OEM package available, we can print your colored logo, print your OEM box, OEM Carton
