Basic Info.
Model NO.
DJF(d)
Material
Metal
Application
Poultry House, Greenhouse, Industrial Factory
Installation
Ceiling Fan
Certification
CCC, CE
Product Name
Djf(D) Series Cow House Ventilation Exhaust Fan
Frame Material
Galvanized Sheet(or Ss as UR Request)
Blade
Stainless Steel 4
Drive
Direct Drive
Input Power
400W
Air Flow
21000cbm/H
Speed
1 Speed
Power Supply
Electric
Apply
Cow House Haning Fan
Type 1
Axial Flow Air Cooling Ventilation
Transport Package
Standard Package
Specification
International Standard
Trademark
SANHE
Origin
Shandong China
HS Code
8414609090
Production Capacity
2000PCS/Week
Product Description

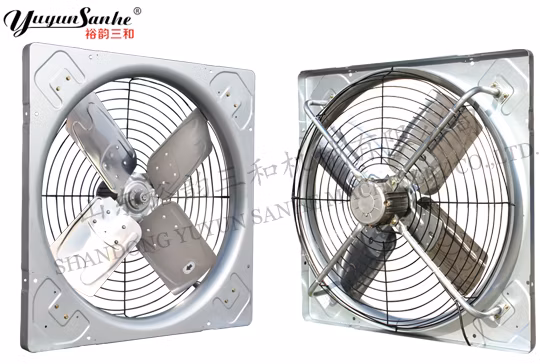

DJF(d) Series Cow-House Exhaust Fan
Product Description:
Product Application:
DJF(d) Series Hanging exhaust fan is widely used in the cow cattle dairy barn house farm for ventilation and air cooling.
Technical Parameter:
| Model | Drive | Blades Diameter (mm) | Blades Rotational Speed | Motor Rotational Speed | Air Flow (m³/h) | Noise Decibels (db) | Input Power (W) | Voltage (V) | Frequency (HZ) | Outline Size (H*W*T) (mm) |
| DJF(d)-1000 | Direct | 1000 | 700rpm | 700rpm | 21000 | ≤64 | 400 | 220 / 380/ Customized | 50 / 60 | 1120*1120*300 |
 | Round Frame 1. Use thickened galvanized sheet with zinc coating 275g/sqm for no rust. 2.Flanging edge backflow design is adopted for ventilation increasing, vibration and noise reducing, and stability improvement. |
| Hanging Rings Circle hanging rings can be customized to easy installtion. |  |
 | Fan bladesMaterial: mirror stainless steel by punch forming. Advantage: Large air volume, no deformation, no dust, attractive and durable. |
| Motor 1.Sanhe motors with aluminum-magnesium alloy housing good heat emission, high efficiency 2.Reasonable dimension, light weight, low current, big torque. |  |
 | Installation site Experiments have improved that in order to get the best ventilation effect: 1.the optimum installation site is rightly above of the feeding trough. 2. the fan bottom and ground distance is 2.7m 3.Leaning angle controlling within 15° to 30° is the best. |
Italligent Dynamic-balance Tester Fan blades are adjusted by Intelligent dynamic-balance to ensure the fan smooth running,lower vibration,less noise,increase stability. |  |
Installation Diagram | |
About our Company

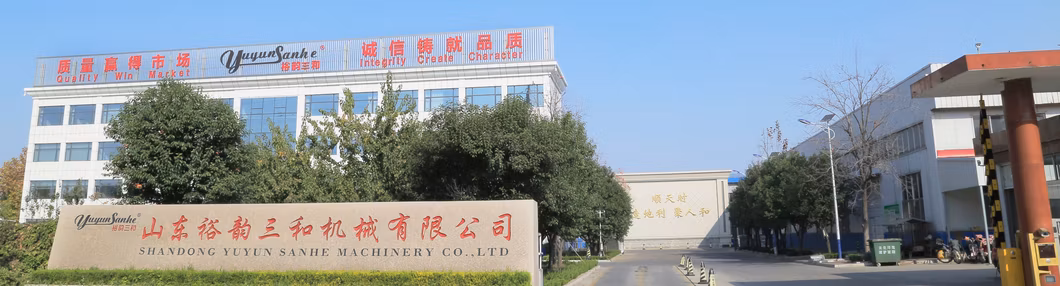

Shandong Yuyun Sanhe Machinery Co.,Ltd is the biggest and the most professional manufacturer of ventilation equipment in
