Basic Info.
Feature
Anti-Corrosion, Earthquake Resistance, Easy To Install, Recyclable
Install
Support Installation
Main Structure
Light/ Heavy Steel Structure Frame
Size
Customized Size
Certification
ISO9001/CE/GOST
Application Fields
Metal Building
Surface Treatment
Painting / Galvanized
Grade
Q235 /Q345
Purlin
C.Z Shape Steel Channel
Design Drawing
CAD Cam Drawings Offered
Application
Steel Structure Frame
Brand
Dongan
Transport Package
Normal
Specification
custom
Trademark
Dongan
Origin
Heilongjiang China
HS Code
9406000090
Production Capacity
15000ton/Year
Product Description
Overview
ONE-STOP services & Customized solutions, 18 years+ experience of R&D, Design, Manufacturing, Exportation and After-sales support
Dongan Custom prefabricated steel structure building

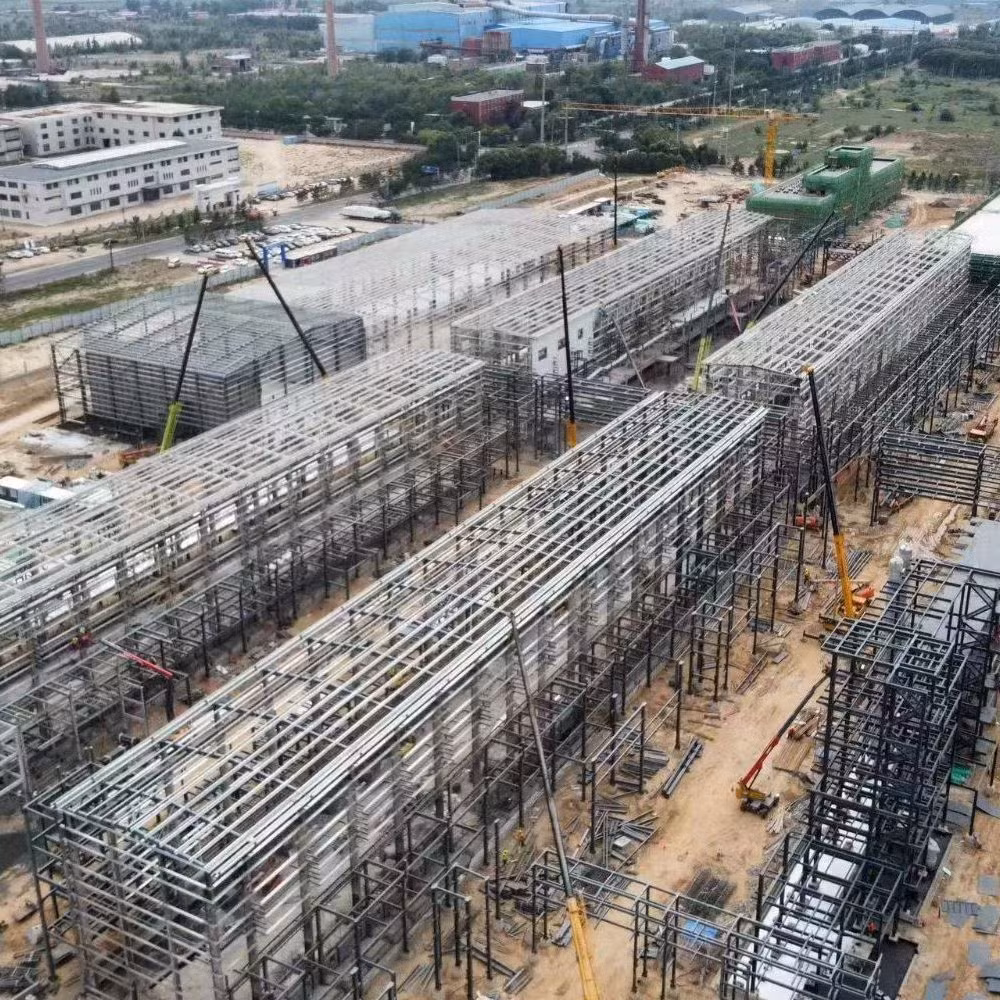

The installation projects of Dongan construction engineering enterprises mainly include: single-storey to multi-storey steelstructure construction projects. Railway, road and urban Bridges, industrial platforms and supports, removable and transportable structures, etc. These structures are now successfully used in industrial and civil buildings, public buildings, municipal and road and bridge projects. It has the characteristics of high strength, light weight and short construction period.
Steel structure building is formed by the main framework through linking up the H beam, C purline, Z purline steel components.Roof and wall using a variety of panels together with other components such as windows and doors. The steel building has theadvantages of wide span, high strength, light weight, low cost, temperature protection, save energy, beautiful appearance, short construction time, good effect of insulation, long using life, space-efficient, good seismic performance, flexible layout, etc.
Steel structure building is formed by the main framework through linking up the H beam, C purline, Z purline steel components.Roof and wall using a variety of panels together with other components such as windows and doors. The steel building has theadvantages of wide span, high strength, light weight, low cost, temperature protection, save energy, beautiful appearance, short construction time, good effect of insulation, long using life, space-efficient, good seismic performance, flexible layout, etc.
| Material list | |
| Project sample | Steel structure warehouse |
| Building size | Such as 78*30*8.5 m/ customized |
| Main steel structure | |
| Steel column | H(300-550)*200*6*10 mm , steel Q345 |
| Steel beam | H(300-550)*180*6*8 mm, H 300*180*6*8 mm,steel Q345 |
| Second steel structure | |
| Roof purline | C180*75*50*2.5 mm |
| Wall purline | C180*75*50*2.5 mm |
| Cross support | 20 round steel bar, steel Q 235 |
| Column bracing | 20 round steel bar, steel Q 235 |
| Angle brace | L 50*4 Angle steel , steel Q 235 |
| Tie bar | 89*3 mm, steel Q235 |
| Roof and wall panel | |
| Roof panel | 50/80/100/120/150/200 mm sandwich panel (EPS, PU, Rock wool, Glass wool) |
| Wall panel | 50/75/100/120/150/200 mm sandwich panel (EPS, PU, Rock wool, Glass wool) |
| Rolling up door | Automatic rolling up door |
| Single wing door | Sandwich panel door |
| Window | Aluminum/ PVC sliding window with single glass |
| Fittings | Glass adhesive, self-tapping screw, etc |
| Other fittings | |
| Embedded | M 24 steel Q 235, process |
| Intensive bolt | Grade 10.9 |
| Ordinary bolt | Grade 4.85 |
Steel structure components:
Dongan Steel Structure is the professional manufacturer of Steel Structure Warehouse, Workshop, Pre-engineered building. Pre-engineered steel structure warehouse is steel structure built over a structural concept of primary members, secondary members, roof and wall sheeting connected to each other and various other building components. These buildings can be provided with different structural and non-structural additions such as skylights, wall lights, turbo vents, ridge ventilators, louvers, roof monitors, doors & windows, trusses, mezzanine floors, fascias, canopies, crane systems, insulation etc., based on the customer's requirements.
Product Application:
Steel structure buildings serve a wide range of purposes, including warehouses, workshops, factories, cold storage facilities, high-rise buildings, shopping malls, power plants, distribution centers, pedestrian bridges, steel-structured hotels, prefabricated public schools, sports arenas and halls, car parking centers, airplane hangars and aviation facilities, church buildings and community centers, poultry farms, agricultural buildings and barns, storage sheds, self-storage buildings, greenhouses, garages, commercial buildings, industrial facilities, and much more.
Q1: You are manufacture factory or trading company?
A: We are manufacture factory. And you are welcomed to visit us at any time for inspection. The quality control flow and sales team will show you our professionalism. Also, you will get best and most competitive price after visiting us.
A: Yes, our professional engineering team can create a design based on customers' requirements.
Q3: How to pay?
A: We accept payment via T/T and irrevocable L/C at sight.
Q4: How to install?
A:Installation is easy and fast. We will provide a detailed installation video and instructions. If necessary, technicians can be sent to assist you on-site. However, buyers are responsible for the visa fee, tickets, accommodation, food, and wages of the technicians.
Q5: What is the delivery time?
A: Delivery time depends on order quantities. In general, the delivery time to nearest seaport in China will be 30 days after receiving deposit.
A: Delivery time depends on order quantities. In general, the delivery time to nearest seaport in China will be 30 days after receiving deposit.
